Thermal Print Heads (TPH)

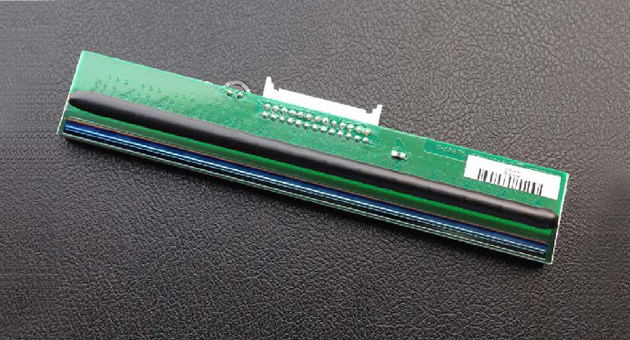

TPH for Barcode Label Printers (Thin Film)
Features
The unique shape of heater elements enables sharp printing image and supports wide range of applications such as labels and photos. From the experience of thick film technologies, high durability and long life are realized.
Application
Barcode label printers with fast printing speed (up to 300mm/s)
Spec
|
U |
3U |
| Resolution |
203dpi |
300dpi |
| Print width |
2inch / 4inch / 6inch |
| Print speed |
~12ips |
~8ips |
| VH |
24V |
| Platen |
Max φ20 |
Max φ20 |
| Heater Resistance |
800Ω |
1500Ω |
| Run Length |
150km |
*1 Design technology from Mitsubishi, customized design with any printing width at lower cost.
*4 Customized head support according to customers.
- Material-Aluminum, Steel, Stainless, Plastic.
- Process-Extrude, Die Cast, Injection, Press.
*5 Various solution for customers.
- Connector.
- FFC direct soldering.
- FPC direct soldering.
